首頁 > Products > Torque limiter

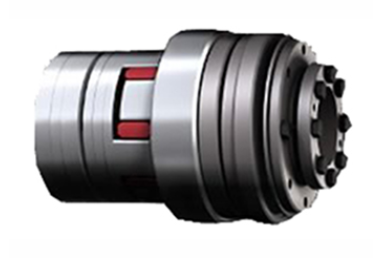

MCA-G type torque limiter

產品型號:MCA-G

標準編號:MC
聯軸器類型:Torque limiter

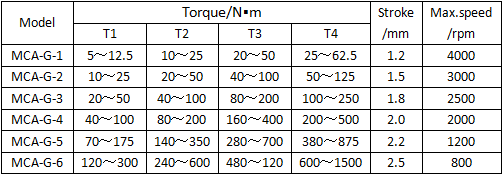

公稱轉矩:5~1500N·m
軸孔:10~80
外形尺寸:70~175
孔徑:10~80
重量:
長度:102~255
外徑:70~175
是否提供加工定制:Yes

產品描述
參數詳情

Main performance characteristics:
1. The standard zero-backlash elastic coupling facilitates the connection between the shaft and the shaft, has a certain eccentricity compensation function, and has good shock absorption.
2. High response speed and accuracy.
3. The reset method can be reset at 15°, 30° and 60° upon request.

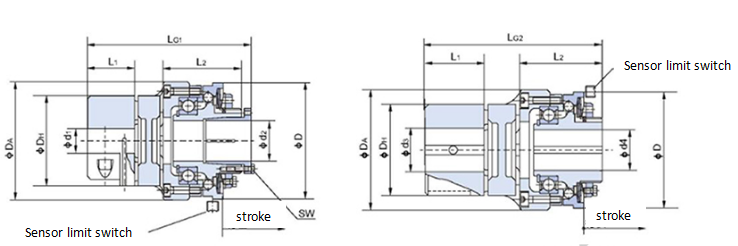

4. After overload, it can be equipped with proximity switch, output signal alarm or stop the motor.
5. The adjusting nut has a scale on the compression plate, which is convenient for adjusting the torque.


?
